EvenTiles from Start to Finish–Part 7

In the previous episode of this series about how to develop a Windows Phone application from scratch we used the Isolated Storage Explorer Tool to take a look at the contents of the ApplicationSettings, stored in IsolatedStorage on the device or emulator. This time we continue dealing with our application settings, because we are going to talk about Fast Application Switching and Tombstoning.

As you probably know, only one application can be running in the foreground on a Windows Phone. That application can use as much resources as it needs and should be as responsive as possible to give end users a great experience. Typically, users switch often between applications. They might not even think about different applications, because they are most likely very task oriented. To give end users the best experience, our applications share a responsibility with other applications and with the operating system.

If our application is currently running in the foreground, there are two important reasons for our application to stop running in the foreground:

The user terminates our application by pressing the Back Key on the phone until the entire back stack of pages for our application is empty.
Our application is interrupted because some sort of an event occurred.

The first situation is simple. When our application is terminating, it is our responsibility to store information that we want to persist until the next time our application is running. This is what we did for EvenTiles in part 5 of the series, using the Application_Launching and Application_Closing methods that are defined in the App.xaml.cs file.

NOTE: The description of Fast Application Switching and Tombstoning in this article is valid for Windows Phone Mango, not for previous versions of the operating system.

The following picture shows our application running over time. The user navigated to the SettingsPage on EvenTiles, modified the string value and decided to use the Start Key on the phone to start another application. After a while, the user returns to our application by pressing the Back Key until our SettingsPage is visible again.

For the user, this experience is great, because when they come back to our application, it shows up exactly as it was when they moved our application to the background. The operating system simply keeps our application in memory. There are some restrictions with regards to applications using certain resources like the camera. To keep our story lean and mean we will omit those. When the user starts many applications (thus putting more and more applications in the background), at some time the amount of available memory gets so low that another application can no longer be started. In this situation, the operating system decides to remove the oldest application in the background from memory, saving just minimal state information for that application. In this situation, the application that was just removed from memory is said to be Tombstoned. To restore our application from being tombstoned, we not only need to reload our application settings (as we did on the Application_Launching event), but most likely we also need to restore additional data. The Operating System ‘remembers’ the page in our application the user had visible when we were tombstoned. It is our responsibility to restore data that the user entered on that page (for instance the contents of a Textbox).

When our application is send to the background, several things happen. On the page that is currently visible, an OnNavigatedFrom event will occur. Also, the Application_Deactivated method in the App.xaml.cs file will be called. When an application is switched to the background, basically three things can happen to it:

The application will become the foreground application again without having entered the tombstone state. In this situation the application can benefit from Fast Application Switching.
The application got tombstoned, but it will become the foreground application after a while. In this situation the application must restore more state information.
The user starts the application again by clicking its icon or tile on the start screen. In this situation, the previous instance of the application is removed and the user should see the application in its initial state.

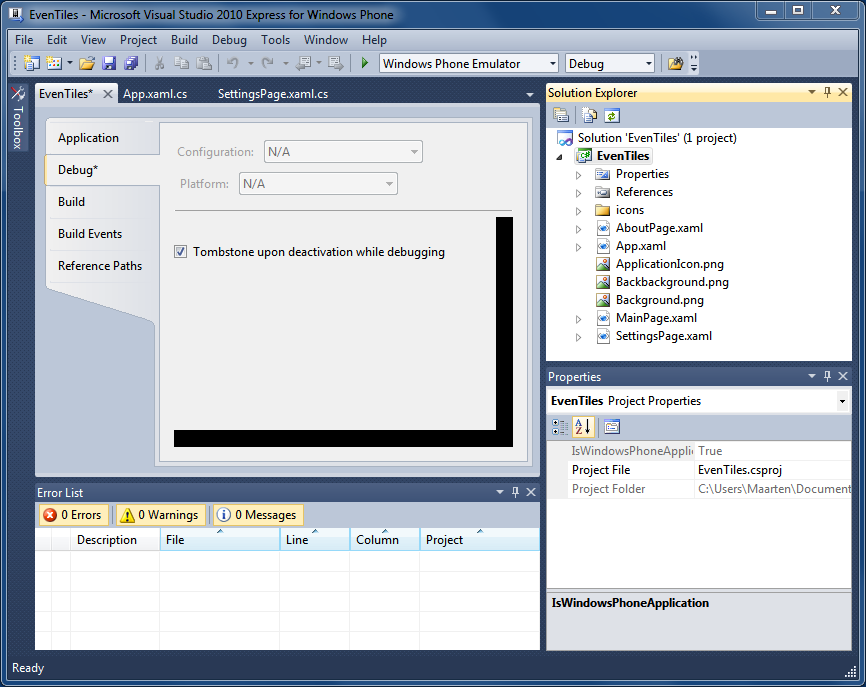

When you are debugging your application in Visual Studio, the default behavior when the application is moved to the background is for it to remain in memory. However, by modifying one of the project properties (as shown in the screen dump on the left), you can force the application to become tombstoned, regardless from the amount of free memory on the device (emulator). In this way, we as developers have the possibility to test our applications in either state they enter when being moved to the background. You should make sure that you test the tombstone scenario for your application. For instance, if EvenTiles with its current functionality is tested for tombstoning it will crash. This currently has to do with the way that data is initialized. In EvenTiles, we have a string property defined in App.xaml.cs that will later be used to write information to the back side of our Secondary Tile. The SettingsPage already makes use of this property. However, we are initializing this property, named ActualBackSecContent when the application is started in the Application_Launching method.

Activating and Terminating

// Code to execute when the application is launching (eg, from Start)
// This code will not execute when the application is reactivated
private void Application_Launching(object sender, LaunchingEventArgs e)
{
    if (!appSettings.Contains(keyActSecBackContent))
    {
        appSettings[keyActSecBackContent] = DefaultSecBackContent;
    }
    ActualSecBackContent = (string)appSettings[keyActSecBackContent];
}

// Code to execute when the application is activated (brought to foreground)
// This code will not execute when the application is first launched
private void Application_Activated(object sender, ActivatedEventArgs e)
{
}

// Code to execute when the application is deactivated (sent to background)
// This code will not execute when the application is closing
private void Application_Deactivated(object sender, DeactivatedEventArgs e)
{
}

// Code to execute when the application is closing (eg, user hit Back)
// This code will not execute when the application is deactivated
private void Application_Closing(object sender, ClosingEventArgs e)
{
    appSettings[keyActSecBackContent] = ActualSecBackContent;
}

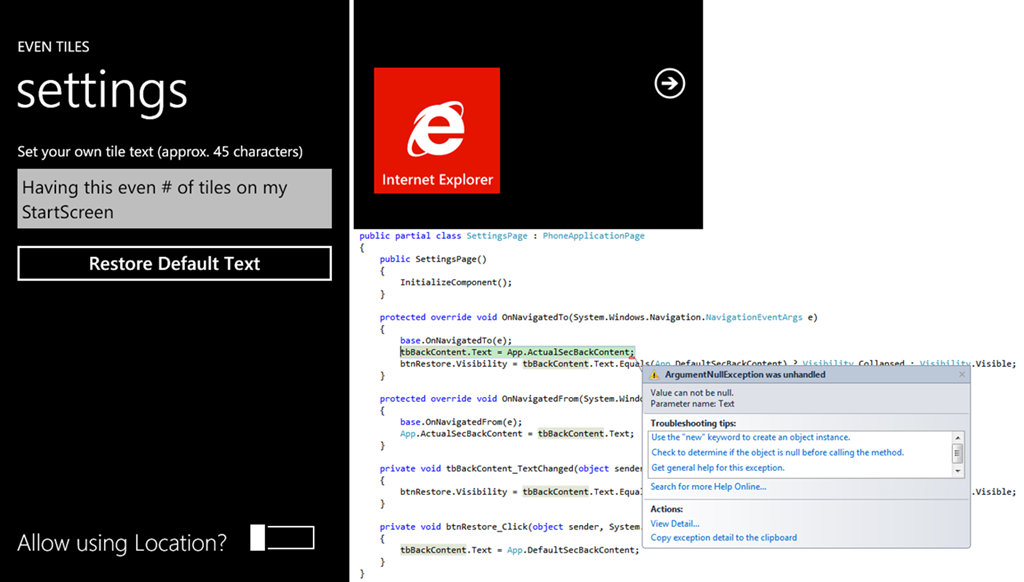

Even though our application is removed from memory when it is tombstoned, if the user navigates through the back stack using the back key on the phone, eventually they will return back to a page of our application. In order to make this happen in case our application was tombstoned, it has to be reloaded again to memory to become active. In this situation, minimal state information was stored by the operating system (for instance which page was the last page the user saw when our application got tombstoned). On returning from tombstoning we will return to that page, but since the application needs to be started completely, classes have to be newly created and code in constructors of those classes will therefor be executed. To distinguish between starting a fresh copy of the application or returning from the background, Application_Launching (fresh restart) or Application_Activated (tombstoning or fast application switching) is called in our App.xaml.cs file. If our application was still in memory, there is no problem, after all, the property ActualSecBackContent still holds its value. If we are returning from a tombstoning situation we do have a problem, since Application_Activated will be called instead of Application_Launching. That is why the exception that is shown in the screen dump above was thrown.

You might think that this problem could easily be solved by initializing the ActualSecBackContent property in the constructor of our App class, but that would mean that we don’t benefit from fast application switching (the situation where our application remains in memory, even though it is in the background). A better solution is to make use of the Application_Activated event as follows:

Switching between BG and FG

// Code to execute when the application is activated (brought to foreground)
// This code will not execute when the application is first launched
private void Application_Activated(object sender, ActivatedEventArgs e)
{
    if (!e.IsApplicationInstancePreserved)
    {
        // The application was not preserved in memory, so we were tombstoned
        // Only in this case we need to re-initialize ActualSecBackContent
        ActualSecBackContent = (string)appSettings[keyActSecBackContent];
    }
}

// Code to execute when the application is deactivated (sent to background)
// This code will not execute when the application is closing
private void Application_Deactivated(object sender, DeactivatedEventArgs e)
{
    appSettings[keyActSecBackContent] = ActualSecBackContent;
}

If the application is becoming the foreground application, we check if we were still available in memory. If so (e.IsApplicationInstancePreserved == true) we don’t do anything, otherwise we just initialize the ActualSecBackContent property. There is nothing else to do, because we know that a value with that particular Settings key already is available, since the application was launched at some time before Application_Activated was called. If an application is moved to the background you want to make sure to save everything in such a way that you assume that your application will never return to the background. After all, the application can stay in memory, it might be tombstoned but there is also a possibility that the user starts a brand new instance of the application from the start menu. In the latter case, the existing instance of the application in the background will be removed by the operating system.

NOTE: If you are upgrading an existing application for Mango, at the very least (after converting your project in Visual Studio) you need to only retrieve stored data in the Application_Activated method when e.IsApplicationInstancePreserved is false. In that way your application will immediately benefit from fast application switching.

The following video shows the actions we took to prevent the EvenTiles application from crashing after being reactivated from a tombstoned state:

Fast Application Switching and Tombstoning (1)

With the changes that were described so far added to our application, it no longer crashes if we are returning from a tombstone state. There are however more things that need to be considered when the application is brought back from background to foreground. In the next Episode of EvenTiles we will take a look at restoring Focus on an input control when returning from the background.

If you want to see EvenTiles already in action on your Windows Phone, you can install the latest release from Marketplace. Remember that this application is not meant to be extremely useful, although it contains similar functionality that “serious” applications have. All functionality that you can find in the released version of EvenTiles will be covered in the upcoming episodes of this blog series, together with all source code. Just go ahead and get your free copy of EvenTiles from Marketplace at this location: http://www.windowsphone.com/en-US/search?q=EvenTiles (or search on your phone for EvenTiles in the Marketplace application).

EvenTiles from Start to Finish–Part 4

In the third part of this series about how to develop a Windows Phone application from scratch we looked at the Silverlight Toolkit for Windows Phone and page transitions. Today we will work on some functionality in the Settings Page of our application. We will take off where we finished in Part 3, and start with an empty SettingsPage (except for the application name and page title).

The purpose of our complete sample application is to create a Secondary Tile programmatically and pin that to the Start Screen of the user. The Secondary Tile has a front and a back. The text on the backside of the tile can be modified by the end user. EvenTiles is not meant to be extremely useful, it is there to help introduce lots of programming aspects to develop Windows Phone applications.

In this episode we will add a few UI Elements to the SettingsPage to realize the follow functionality:

The text that will be displayed on the backside of the Secondary Tile is visible;
The backside text can be modified;
If the backside text differs from a default text, a button is displayed to allow easy restoration of the default backside text, otherwise the button is invisible.

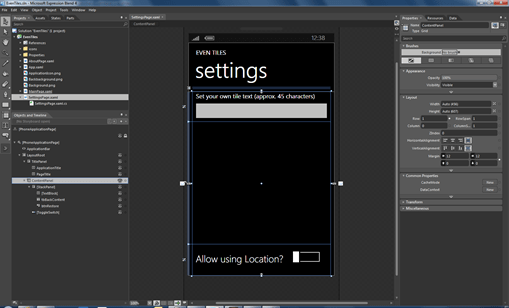

The SettingsPage gets the following layout:

The layout of the UI is relatively simple. In the ContentPanel of the PhoneApplicationPage we have a StackPanel containing 3 different items (a TextBlock, a TextBox plus a hidden Button) and a ToggleSwitch (that is defined in the Silverlight Toolkit for Windows Phone). The ToggleSwitch is already visible but does currently not have any functionality associated to it. The ContentPanel itself is a Grid. Initially, a Grid has one row and one column. To place UI Elements in the Grid and to position them at a particular location you typically make use of multiple rows and/or multiple columns that you first have to define. To get the desired layout, the Grid contains 3 separate rows. In the first row (being row number 0), the StackPanel is hosted. This row takes the height it needs to display all visible UI Elements of the StackPanel. The next row on the Grid takes up whatever space is left on the grid and the last row takes precisely the height it needs to display the ToggleSwitch. The XAML for the ContentPanel looks like this:

SettingsPage UI

<!–ContentPanel – place additional content here–>
<Grid x:Name="ContentPanel"
        Grid.Row="1"
        Margin="12,0,12,0">
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto" />
        <RowDefinition />
        <RowDefinition Height="Auto" />
    </Grid.RowDefinitions>
    <StackPanel>
        <TextBlock HorizontalAlignment="Left"
                    TextWrapping="Wrap"
                    Text="Set your own tile text (approx. 45 characters)"
                    VerticalAlignment="Top"
                    Margin="12,0" />
        <TextBox x:Name="tbBackContent"
                    TextWrapping="Wrap"
                    MaxLength="45"
                    d:LayoutOverrides="Height"
                    TextChanged="tbBackContent_TextChanged" />
        <Button x:Name="btnRestore"
                Content="Restore Default Text"
                Margin="0,0,0,3"
                d:LayoutOverrides="Height"
                Click="btnRestore_Click"
                Visibility="Collapsed" />
    </StackPanel>
    <toolkit:ToggleSwitch Header=""
                            Grid.Row="2"
                            Content="Allow using Location?" />
</Grid>

You can see our Grid.RowDefinitions being defined. There is also a possibility to define Grid.ColumnDefinitions, but for this particular simple UI we only need rows. Scrolling through the XAML you can see all individual UI Elements being defined. The TextBox and the Button connect events to event handlers. For the Button, the Click event is connected to a method called btnRestore_Click. Each time the user Clicks the Button, the code that is defined in btnRestore_Click will execute. That code is defined in C#. We will take a look at the code later. The TextBox uses the TextChanged event, that will be fired each time the value of the Text property of the TextBox changes. If this happens, code inside the method tbBackContent_TextChanged will execute.

In Part 2 of EvenTiles we looked at the NavigationService that can be used to navigate from one PhoneApplicationPage to another PhoneApplicationPage. Each time the user navigates to a particular page, the OnNavigatedTo method on that page is called. You can override that method to extend its functionality. When the user navigates away from a PhoneApplication, a similar method (OnNavigatedFrom) is called that you again can override to add specific functionality you need on a particular page. In the SettingsPage of EvenTiles we are overriding both these methods to add some functionality:

OnNavigated …

protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
{
    base.OnNavigatedTo(e);
    tbBackContent.Text = App.ActualSecBackContent;
    btnRestore.Visibility = tbBackContent.Text.Equals(App.DefaultSecBackContent) ? Visibility.Collapsed : Visibility.Visible;
}

protected override void OnNavigatedFrom(System.Windows.Navigation.NavigationEventArgs e)
{
    base.OnNavigatedFrom(e);
    App.ActualSecBackContent = tbBackContent.Text;
}

Both these methods contain a call to a similar method, preceded by the keyword base. These methods execute functionality that is defined in the base class of our derived PhoneApplicationPage class. To make sure that we don’t skip that code (which might contain important functionality for page navigation) we have to call those methods. Immediately under the call to the base class methods, our own functionality is added. When we are navigating to the SettingsPage, we initialize the TextBox with the currently stored backside content for a Secondary Tile that we will create later in this series. This content is defined in a string property in the App.xaml.cs file. Next we determine if the Button that can be used to restore a default text needs to be visible. This is only the case when the TextBox displays something different from a default text that is also defined in App.xaml.cs. In App.xaml.cs the default text is assigned to the actual text.

When the user is leaving the SettingsPage (for instance by pressing the Back button on the phone), we simply store the current content of the TextBox for later use.

Let’s now take a look at the event handlers for both the Button and the TextBox:

Event Handlers

private void tbBackContent_TextChanged(object sender, System.Windows.Controls.TextChangedEventArgs e)
{
    btnRestore.Visibility = tbBackContent.Text.Equals(App.DefaultSecBackContent) ? Visibility.Collapsed : Visibility.Visible;
}

private void btnRestore_Click(object sender, System.Windows.RoutedEventArgs e)
{
    tbBackContent.Text = App.DefaultSecBackContent;
}

If the text in the TextBox changes, the TextChanged event handler code will execute. Just like in the OnNavigatedTo method, we determine if the Button that can be used to restore a default text needs to be visible. If the Button is clicked, we simply restore the default text. Since this also fires a TextChanged event (after all, the text of the TextBox is changed), executing code in the TextChanged event handler will now result in the Button to be hidden.

In the following video you can see all the steps that are needed to add the described functionality to the SettingsPage.

Extending the SettingsPage for EvenTiles

We are still far away from having all functionality in place to actually make a Secondary Tile visible on the Start Screen. However, we need to understand a few fundamental concepts in order to create successful Windows Phone applications, so we will continue with the ground work for another couple of episodes. In the next episode we will look at persisting data in IsolatedStorage to make sure that we store data when the user stops using our application.

EvenTiles from Start to Finish–Part 1

Technorati Tags: Windows Phone,Mango,Silverlight,EvenTiles,Application Development,Getting Started,Visual Studio 2010

As I promised a few days ago, in between other blog entries I will show you how to create a complete Windows Phone application from scratch. This project starts with running Visual Studio to create an initial solution and it stops after having updated the application a few times and successfully submitted each different version to MarketPlace. Initially I will focus on creating the application without thinking too much about testability and reusability. I just show you the possibilities of Visual Studio, the Emulator and later on Expression Blend, Marketplace and additional tools. Later in this project we shift focus towards creating a more maintainable application, also using modern design patterns like MVVM. This series of articles is not meant to be a complete programming course for Windows Phone. If you want to know more about developing applications in C#, you should take a look at the Rob Miles’ Yellow Book. Not only an excellent resource to learn the C# programming language but also fun to read. If you want to learn more about Windows Phone application development, I can highly recommend Rob Miles’ Blue Book, and Charles Petzold’s book titled Programming Windows Phone 7. The good news is that all these books can be downloaded for free and they are all very valuable resources.

Ok, back to application development. In this first part, you will learn how to create the initial solution for your project, how to modify the default Application Tile, how to write something on the back of the Application Tile through the manifest file and how to modify the default Icon. You will also see the application in action for the first time. All steps that are necessary are not only documented, but also accompanied by a short video that can be viewed in this blog entry as well. If you already want to have a sneak preview of the application we are going to develop, it will be published on Marketplace soon. I will update this line with the link to the application once it has been certified.

To begin with, we create a new Windows Phone Silverlight Application, call it EvenTiles and modify both the ApplicationIcon.png and the Background.png files to have a transparent icon for the application and a transparent Application Tile. The cool part about adding transparency is that the area’s of the art work that are transparent show up in the theme accent color that is selected by the user of the phone. Of course we are also setting the application name and a page name on the application’s main page.

For this first version of EvenTiles we are not going to add additional functionality, although we will change the behavior of the Application Tile. Instead of showing a static Application Tile, we want it to alternate between displaying the front and the back. We can achieve this by providing back side content for the Application Tile. This can actually be done in code, but also by adding definitions for background content to the application’s manifest file. Each Windows Phone application has a manifest file with the name WMAppManifest.xml that contains information about the application, including an optional definition of content that needs to be displayed on the back side of the Application Tile. We will modify the WMAppManifest file to specify what we want to see on the back side of the Application Tile (as shown in the following code snippet):

Defining the Application Tile

<Tokens>
<PrimaryToken TokenID="EvenTilesToken" TaskName="_default">
<TemplateType5>
<BackgroundImageURI IsRelative="true" IsResource="false">Background.png</BackgroundImageURI>
<Count>0</Count>
<Title>EvenTiles</Title>
<BackBackgroundImageUri IsRelative="true" IsResource="false">Backbackground.png</BackBackgroundImageUri>
<BackTitle>EvenTiles</BackTitle>
<BackContent>Click me to start EvenTiles</BackContent>
</TemplateType5>
</PrimaryToken>
</Tokens>

In order to clearly see the content on the back side of the Application Tile, it’s image is simply an entirely transparent image, meaning it will show a solid theme color as background of the back side content.

If you deploy this application to the emulator or to a real device, you will see a rotating Application Tile after you have pinned the application to the start screen. You can watch the application being created in this video:

EvenTIles:Part 1 – Add a back side to the Application Tile

So far, the following additional EvenTiles episodes have been published:

Every Live Tile deserves a Windows Phone Application

Over the last week I have been writing about Live Tiles in Windows Phone Mango, how you can create Secondary Live Tiles and how you can display information on the back of Live Tiles and periodically change that information. There is more to write about Live Tiles, but I think it is time to change the topic slightly.

In part 4 of the Live Tile mini series, I introduced an application that adds a Secondary Tile to the Start Screen of your phone. That application is now almost finished in its first version. This free application has a Secondary Tile, it contains an AdControl, deals with location awareness and periodically updates the Secondary Tile. It also can access Marketplace, both to submit a review for the application and to display other applications that are published by me. All in all it is a complete application, yet its functionality is very simple. It is simple enough to explain it almost entirely. That is exactly what I am planning to do over the upcoming weeks.

Initially, the application makes use of code behind. In a later version it will be changed, making use of MVVM and Unit Testing. The application will also act as a sample to show profiling, debugging background agents and many more topics. I will combine blog entries and videos to show how to create this application, how to test it and hopefully how to publish it to Marketplace. As soon as the application is available for download, I will let you know in this blog entry. Here is a sneak preview of EvenTiles.

This application is very simple, yet it contains lots of functionality that you can use inside a Windows Phone application. When the application is started, it checks if a Secondary Tile exists. Actually, it can even be started by clicking on its Secondary Tile when available. If no Secondary Tile is pinned to the start screen, the user has the option to create a Secondary Tile and automatically pin it to the Start Screen. When the Secondary Tile is already pinned on the Start Screen, the user has the possibility to remove it from the Start Screen. You can also see that the application has advertisements. In order to allow for localized advertisements, the application reads the current location of the device once (if the user allows doing that). The application has a Settings Page that can be reached through the ApplicationBar as well as an About Page. To preserve data, the application makes of of Isolated Storage. To transfer data between the application and its background agent, a file in IsolatedStorage is used that is protected by a Mutex. So even though the application itself is very simple, it contains many pieces of functionality that you can use in very complex applications as well. As such, this application is hopefully a starting point that allows you to develop fantastic Windows Phone Applications. Stay tuned for the first part of EvenTiles from Start to Finish – Part 1, which shows you how to create the initial solution and how to create a Secondary Live tile.

Where did my ads go?

Since a few weeks, Windows Phone developers can retrieve data on crash counts and stack traces for each published application through the App Hub. Because two of my applications indeed showed a few crash counts, it was of course time to fix the issues and to update the applications. One of those applications, ClickerLite, uses the AdControl to display advertisements inside the application. Besides fixing bugs, I also built the application against the latest version of the Windows Phone SDK. Instead of having to download and use a separate assembly to enable (Microsoft Advertising pubCenter) ads, the Microsoft Advertising SDK for Windows Phone is now part of the Windows Phone SDK. Of course this makes it easier to use the AdControl with full designer support in both Visual Studio 2010 and in Expression Blend 4.0. However, when I started to test my application, the AdControl was not visible, even though I did set the control up to receive test ads.

As often, the solution to the problem was easy, although it took me some time to find it. I simply needed to add the ID_CAP_MEDIALIB capability to my application’s manifest file. In the previous version of the Advertising SDK, this capability was not required and therefore not included in the manifest file. The end result was test advertisements showing up in the Visual Studio 2010 designer. However, when running the application (both in the emulator and on a real device), the test advertisements did not show up. This of course was also a clear indication that real advertisements would not show up in a released version of the application.

Adding ID_CAP_MEDIALIB solved the problem, the test ad showed up during testing, and the application was ready to be updated.

On a side note, if you are curious about ClickerLite, you can find it here on the Windows Phone 7 Marketplace. Note: This link will work from a Windows Phone 7, or from a PC with Zune software installed.

A new Windows Phone 7 Device (Emulator)?

Just a few hours ago, the Windows Phone Developer Tools Update was released by Microsoft. This update is specifically for Windows Phone application developers to allow them to build apps that are ready for the upcoming Windows Phone OS update. After installation of the tools update, you can test copy and paste functionality on the (also updated) emulator.

In order to start working with the updated tools, you will need to download the Windows Phone Developer Tool update and a separate Visual Studio 2010 update. Also make sure to read the Release Notes for the update. The order of installation for the separate tools is not important but you have to install them both. A little more background information about the latest WPDT update can be found on the Windows Phone Developer Blog.

It is expected that all existing apps that are already published in Marketplace will continue to work, both on phones that will be updated to the new version of the OS that will be available later, but also on phones that are not updated. To show the new copy and paste feature of Windows Phone 7 in action I have created a small application that takes a URL and allows that URL to be copied in Internet Explorer on the Windows Phone Emulator. To see this little application in action, just take a look at this video.

Windows Phone 7 Copy and Paste with the WPDT January Update.

Using a BackgroundWorker to load SoundEffects into memory

In a previous post I showed you how to use specific XNA Framework functionality inside a Silverlight application for Windows Phone 7 to be able to use sound effects. Typically, when you want to play a sound effect you want to have it available immediately. As long as you don’t have too many sound effects to be played inside your application you can keep them all available in memory. However, you still need to load the sounds into memory at some time, typically when the application is started. Even if you don’t have too many different sounds that you want to use inside your application, loading sounds from a file into memory is still a time consuming operation, something that especially hurts your application during startup. After all, the end user that starts your application wants to work with it immediately, and it is a frustrating experience if you have to wait a while, even if it is only for a few additional seconds. The obvious choice in this situation is to load the sounds in the background, allowing the user to already working with the application. Of course I am using the sounds I am loading in the background as an example to show a BackgroundWorker in action. More long lasting operations (and not only during application initialization) are candidates to run on a BackgroundWorker. In a later blog post we will talk more about performance of Silverlight based Windows Phone 7 applications and things you have to think about. This post simply shows you how to use the BackgroundWorker. To talk about the BackgroundWorker we will take a look at the same application we used before when discussion the use of sounds inside an application. To separate sounds and sound handling from the rest of my application, I created a SoundPlayer class with a place holder for a number of sounds and a static method that loads those sounds from a number of wav files into SoundEffect objects:

public static void LoadSoundEffects()
{
    soundLoader = new BackgroundWorker();
    soundLoader.DoWork += new DoWorkEventHandler(soundLoader_DoWork);
    soundLoader.RunWorkerCompleted +=
        new RunWorkerCompletedEventHandler(soundLoader_RunWorkerCompleted);

    soundLoader.RunWorkerAsync();
}

In the above code snippet, a new instance of a BackgroundWorker is created and two event handlers are assigned to respectively the DoWork event and the RunWorkerCompleted event. Finally, the RunWorkerAsync method is called, which in turn fires the DoWork event on the BackgroundWorker, allowing the event handler to execute on a separate thread. You have to be careful not to update UI Elements inside the DoWork event hander. It is only allowed to update UI Elements on the thread that created them (typically the UI Thread). In this sample this is no problem since the BackgroundWorker is only used to load sounds into memory. If you need to update UI Elements on a separate thread you must make use of the BeginInvoke method of the Dispatcher class.

In this sample, the DoWork even handler is simple and straight forward. It looks like this:

static void soundLoader_DoWork(object sender, DoWorkEventArgs e)
{
    int i;

    soundEffects = new SoundEffect[nrSoundEffects];

    for (i = 0; i < nrSoundEffects; i++)
    {
        Stream audioStream = TitleContainer.OpenStream(sounds[i]);
        soundEffects[i] = SoundEffect.FromStream(audioStream);
        audioStream.Close();
    }
}

We are simply reading audio information through a number of streams and store them locally. In order to read the audio files, they are defined as content in the Visual Studio project. When all sounds are stored (or in other words when we are leaving the DoWork method), the BackgroundWorker raises the RunWorkerCompleted event. In its event handler, for this example, we are simply unsubscribing from all events, because the BackgroundWorker to load sounds is only called one time:

static void soundLoader_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
{
    if (soundLoader != null)
    {
        soundLoader.DoWork -= soundLoader_DoWork;
        soundLoader.RunWorkerCompleted -= soundLoader_RunWorkerCompleted;
        soundLoader = null;
    }
}

The BackgroundWorker has more functionality, for instance to report progress for long lasting operations. Progress information can be easily displayed to the user. In the above shown example, progress information is not used. The end result of using a BackgroundWorker is that the user interface remains responsive. In this particular example, the application starts pretty fast so that end-users can start playing while sounds are still being loaded.

If you are curious about this game, you can find it Clicker here on the Windows Phone 7 Marketplace. Note: This link will work from a Windows Phone 7, or from a PC with Zune software installed. The game has a trial mode so you can try it for free.

Another year, another MIX

Last year in April, the place to be was Las Vegas, NV for MIX 10. During this conference Windows Phone 7 was officially introduced. Immediately after MIX 10 the development tools were available for download. Also, the great content that was presented during MIX 10 is still available for you to watch. It seems hard to believe that we have been developing Windows Phone 7 applications for less than a year. We really have come a long way. Windows Phone 7 is released in a number of countries, devices are available in many more countries and the list of applications being released on Marketplace is growing rapidly.

Update: It is no longer possible to vote for MIX11 sessions. Thank you very much if you voted for one (or more) of my sessions that are listed below.

This year, before attending MIX, there is a call to action for everybody (especially for you since you are reading this blog post). You are in control of voting for a number of sessions of which the most favorite sessions will be presented at MIX. Amongst the Windows Phone 7 sessions that are up for voting, three were submitted by me. I am counting on you to help me become part of MIX 11. If you like the things I am writing on this blog or if you have seen me speaking in the past, or just because you are visiting this website, make sure to vote for my MIX 11 sessions. You can vote for all these sessions by clicking on the links. You can only vote for each session once on a physical machine, but of course I can’t prevent you against voting multiple times on different machines. Here are the sessions I submitted for voting (clicking on the individual links will bring you to the voting page for the particular sessions):

Windows Phone 7: Application Architecture

When you start developing Silverlight applications for Windows Phone 7 using Visual Studio 2010, you might be tempted to use code behind to connect your user interface (written in XAML) to your functionality (written in C#). In this sample filled presentation, Maarten Struys explains why this relatively easy approach is not necessarily the best approach to create testable, maintainable and great Windows Phone 7 applications. During the presentation, the power of DataBinding in Silverlight will be revealed and a traditional application, using code behind will be converted into an application that makes use of the MVVM design pattern.
Windows Phone 7 and the Cloud: The Sky is The Limit

Windows Phone 7 is a powerful platform for which you can create great stand-alone Silverlight based applications. To create Windows Phone 7 applications with limitless processing resources and virtually unlimited storage capacity, Windows Azure and Windows Phone 7 are great companions. In this sample filled presentation, Maarten Struys shows you how to create a Windows Phone 7 application together with a Windows Azure based back-end. He explains how the application can efficiently communicate with the back-end using a REST based Web Client interface. He also shows you how to efficiently cache information locally on the phone to make Windows Phone 7 applications operate independent of network connectivity. After attending this session you know how to create Windows Phone 7 applications that are as powerful as server applications.
Fast starting and State Saving Windows Phone 7 Applications

In this sample filled presentation, Maarten Struys shows you the impact of Tombstoning on Windows Phone 7 applications. He shows you how to store the application’s state and individual page state information efficiently. He also explains how your application can start fast and efficiently by making use of multithreading and asynchronous programming techniques. After attending this presentation, your Windows Phone 7 Tombstone headaches will be history and your end users will be happy with your fast starting applications.

Thank you very much for voting! I really hope to see you in Las Vegas between April 12 – April 14 for MIX 11. If you are planning to visit MIX 11, make sure to register before February 11 to benefit from a nice discount.

Adding Sound Effects to a Windows Phone 7 Silverlight Application

Certain Windows Phone 7 applications benefit from using sound effects, even if the application itself is written in Silverlight. You most likely have noticed that you can play media inside a Silverlight application by making use of the MediaPlayerLauncher inside your application to pass control to the integrated media player on the phone or by making use of the MediaElement class. Both these options are great if you want to play audio content under control of some form of media player (with MediaElement allowing to integrate player functionality inside your own application).

However, if you want short sound effects that play under control of your application, you can make use of functionality that is available in the XNA Framework, even if you are developing a Silverlight based Windows Phone 7 application. The XNA Framework contains a SoundEffect class. This class holds a sound resource in memory that can be played from inside your application by calling its Play method. You can even alter properties like the pitch and volume of a SoundEffect. Since there is interoperability possible between Silverlight and the XNA Framework (at least to a certain extend), it is possible to make use of SoundEffect inside a Silverlight application. However, given the different application models for Silverlight and XNA Framework applications, you have to be aware of what you are doing when added SoundEffect to your Silverlight application. A first attempt to add sound might look like this:

using System.ComponentModel;
using System.IO;
using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Audio;

namespace Clicker.Model
{
    public class SoundPlayer
    {
        public enum Sounds
        {
            Switch = 0,
            Penalty,
            StartGame,
            HighScore,
            EndGame
        };

        static SoundEffect[] soundEffects;

        public static void Play(Sounds soundEffect)
        {
            if (soundEffects != null)
            {
                soundEffects[(int)soundEffect].Play();
            }
        }
    }
}

This code snippet, taken from a real application, shows how to play a sound that was previously loaded into memory. To focus on playing sounds, loading the sounds into an array of type SoundEffect is omitted. When the static Play method of the SoundPlayer class is called, an exception is thrown.

Exception

The exception being displayed clearly indicates the cause of the problem. You can read more about solving this particular exception on MSDN, which contains information about enabling XNA Framework Events inside Windows Phone Applications. The information is very relevant, however, it explains how you should regularly call FrameworkDispatcher.Update(). Calling this method dispatches messages that are in the XNA Framework message queue for processing. The documentation gives the advice to call FrameworkDispatcher.Update() regularly, for instance on a timer. For playing single sound effects, this seems to be an overkill. After all, using a timer means that some code will executed repeatedly (in our case even if no sound is currently played). On a battery powered device like a Windows Phone 7 this means that we are draining more battery power then necessary. Instead, I simply modified my code by adding a call to FrameworkDispatcher.Update() immediately before calling the Play method on the SoundEffect object. This works fine in the following scenario:

The only XNA Framework functionality used inside a Silverlight application is one or more instances of type SoundEffect.
Only one single SoundEffect is played at any given time.

The following code snippet shows the modified Play method of my own SoundPlayer class (which is playing sounds as expected):

public static void Play(Sounds soundEffect)
{
    if (soundEffects != null)
    {
        FrameworkDispatcher.Update();
        soundEffects[(int)soundEffect].Play();
    }
}

In an upcoming blog entry I will show you how to load a number of SoundEffects into memory using a BackgroundWorker.

Splash Screens

If you start developing a new Windows Phone 7 application, you usually start by creating a new Visual Studio 2010 project. As part of the initial project, Visual Studio creates a default splash screen for you, consisting of a waiting clock.

A Windows Phone splash screen is simply a jpg file with a resolution of 800 * 480 pixels. This means that it is very simple to replace the default splash screen (which is conveniently stored in your Visual Studio project under the name SplashScreenImage.jpg). Just make sure you have a jpg file with the right resolution and also make sure that it is placed in the root of your Visual Studio project. The name must be SplashScreenImage.jpg and its Build Action must be set to Content in the Properties window. Leaving the original splash screen unchanged in your own application gives end users a somewhat boring experience. After all, a splash screen is used to give users the impression that your application starts fast, and it also occupies users while your application is loading. If all applications use the same default splash screen, it will not help giving users a fast starting impression about those applications. So it is important to provide your own splash screen. If an application does not spent much time initializing, the actual amount of time that a splash screen is displayed is very short. For one of my applications, I did create a reasonably nice splash screen, to find out that the splash screen often is displayed for less then a second. My initial thought was to delay application start to allow end users to admire my splash screen. Of course this is a very bad idea, something you should not even consider doing.

This splash screen is used in a little game that is available on Marketplace. Typically the game starts up in under a second, meaning the user hardly has time to see the splash screen. The good news is that it is at least not the default splash screen. I have to admit that I considered adding a delay in my application for users to see the splash screen. Of course, and end user might like it once to take a look at this splash screen, but after starting an application several times, the splash screen will become boring since it is just a static image.

On a side note, if you are curious about this game, you can find it here on the Windows Phone 7 Marketplace. Note: This link will work from a Windows Phone 7, or from a PC with Zune software installed.

Back to the story about splash screens though. If you are developing a Silverlight application for Windows Phone 7, take the following idea into consideration. By far the best experience you can give end users for fast starting applications, is to take a screen shot from your application’s main page. If your application starts with some animation, make sure to take the screen shot from the initial situation (before the animation starts running).

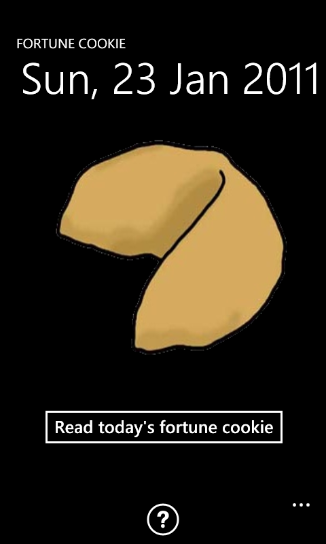

Also, leave the application title / page title out of the splash screen. What I did for my latest application was taking the following shot from the main screen. Once the application is initialized, the application and page title animate in from the top, nice and gently. This gives a very nice experience for end users, and you don’t have to worry that your splash screen is only visible for a very short time, after all, your splash screen partly is your main page.

To have some nice page transitions on your main page, you can make use of functionality that is available in the November release of the Silverlight for Windows Phone Toolkit. An in-depth explanation of how to use these page transitions can be found in this MSDN blog entry by Will Faught.

This is the code that I am using to bring in the application title and page title in an override version of the OnNavigatedTo method:

protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
{
    base.OnNavigatedTo(e);

    if (Settings.Instance.ApplicationLaunching)
    {
        SlideTransition slideTransitionFadeIn = new SlideTransition { Mode = SlideTransitionMode.SlideDownFadeIn };
        ITransition transitionTitle = slideTransitionFadeIn.GetTransition(this.TitlePanel);
        transitionTitle.Completed += delegate { transitionTitle.Stop(); };
        transitionTitle.Begin();
        Settings.Instance.ApplicationLaunching = false;
    }
}

Only when my application is launching (a new instance of the application is started, or the application returns from being tombstoned), the animation will run. In all other situations ‘normal’ page transitions will be executed. I keep track of the application being launched in the app.xaml.cs source file like this:

// Code to execute when the application is launching (eg, from Start)
// This code will not execute when the application is reactivated
private void Application_Launching(object sender, LaunchingEventArgs e)
{
    Settings.Instance.IsTrialMode = RunningMode.CheckIsTrial();
    Settings.Instance.ApplicationLaunching = true;
}

// Code to execute when the application is activated (brought to foreground)
// This code will not execute when the application is first launched
private void Application_Activated(object sender, ActivatedEventArgs e)
{
    Settings.Instance.IsTrialMode = RunningMode.CheckIsTrial();
    Settings.Instance.ApplicationLaunching = true;
}

As you can see, a little bit of code and an additional screen capture from of your application gives you a simple splash screen that is effective for fast loading applications, yet giving the end users a very nice starting experience of your application.

M	T	W	T	F	S	S
			1	2	3	4
5	6	7	8	9	10	11
12	13	14	15	16	17	18
19	20	21	22	23	24	25
26	27	28	29	30

Windows Phone 7: Application Architecture

Windows Phone 7 and the Cloud: The Sky is The Limit

Fast starting and State Saving Windows Phone 7 Applications
